Roof Panels

With our high-performance roof panel systems designed for superior durability, weather resistance and effective thermal insulation, we provide reliable solutions for industrial, commercial and residential buildings. Our insulated roof panels contribute to energy efficiency while ensuring long-lasting protection and structural performance. Explore our roof panel solutions tailored to meet a wide range of building requirements and project specifications.

Get in Touch

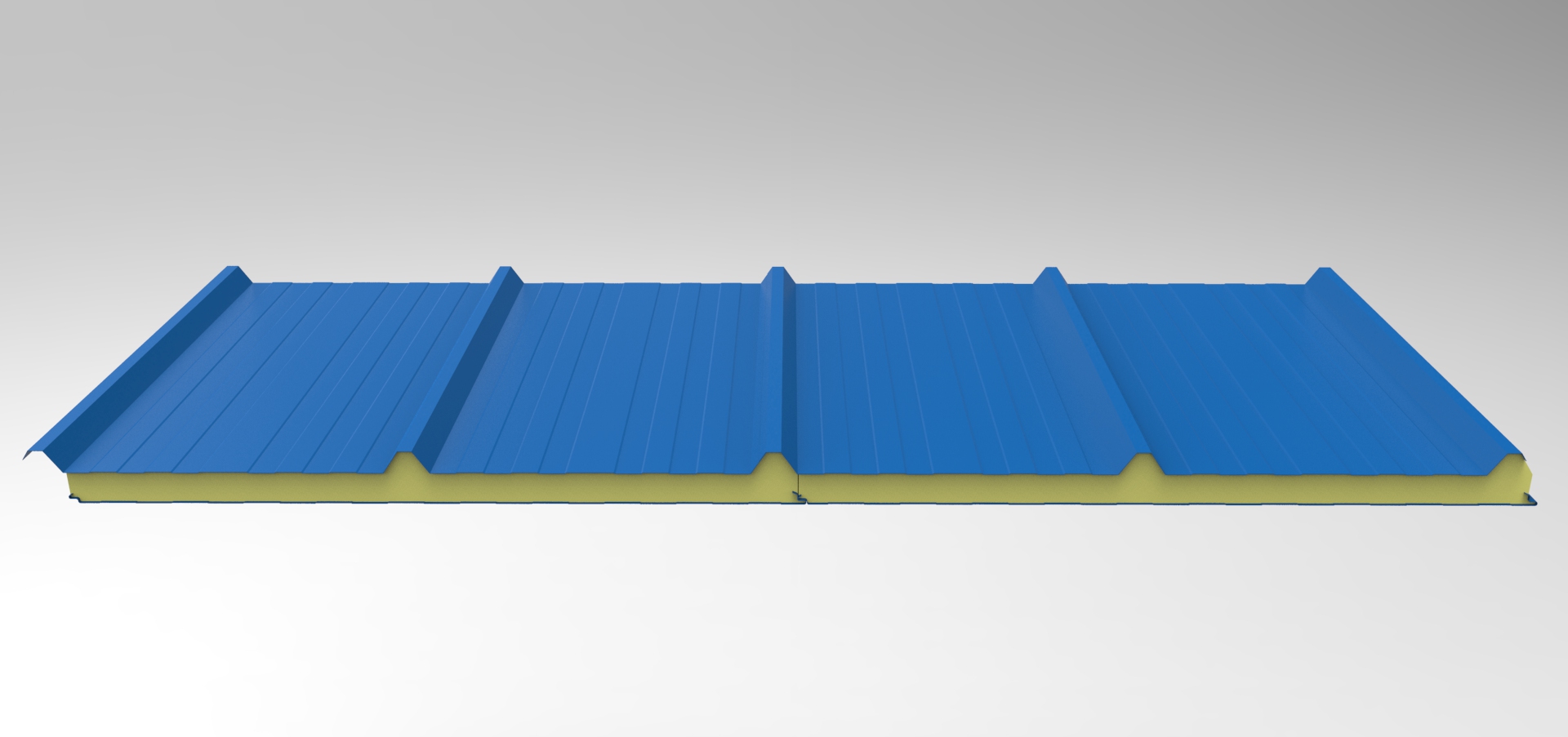

R3 | 3-Rib Roof Panel
R3 Çatı Paneli
Görsel 1
Görsel 2
Görsel 3
Görsel 4

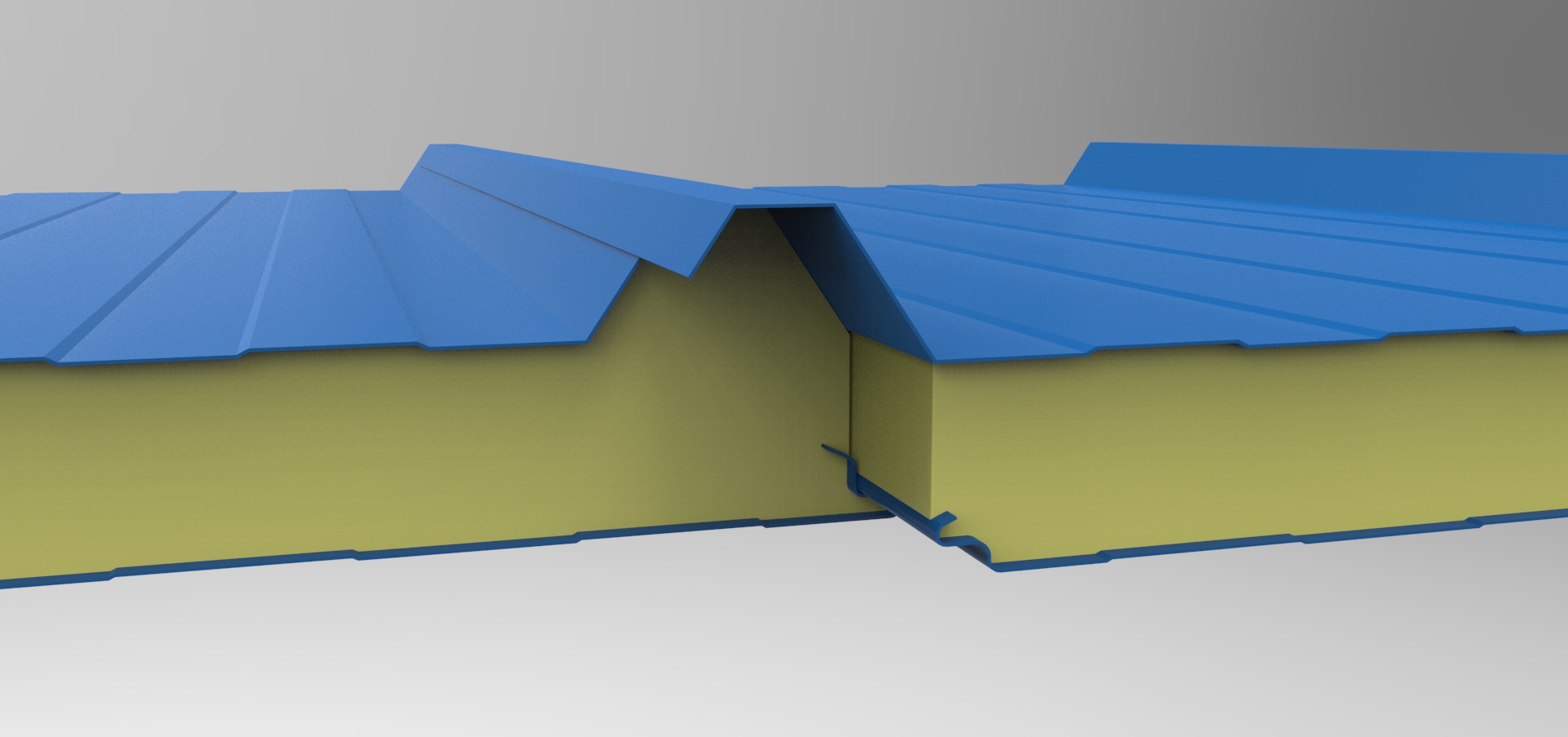

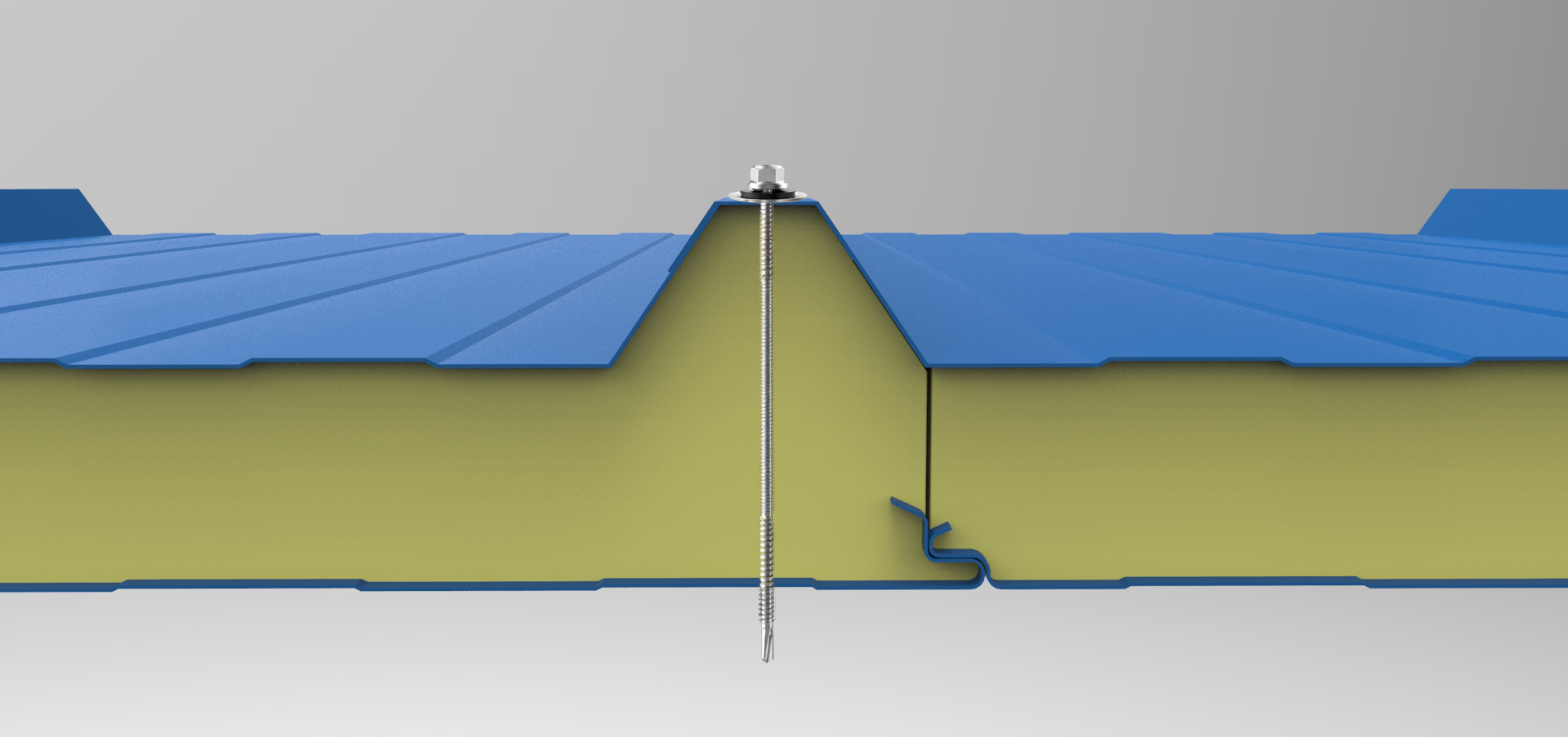

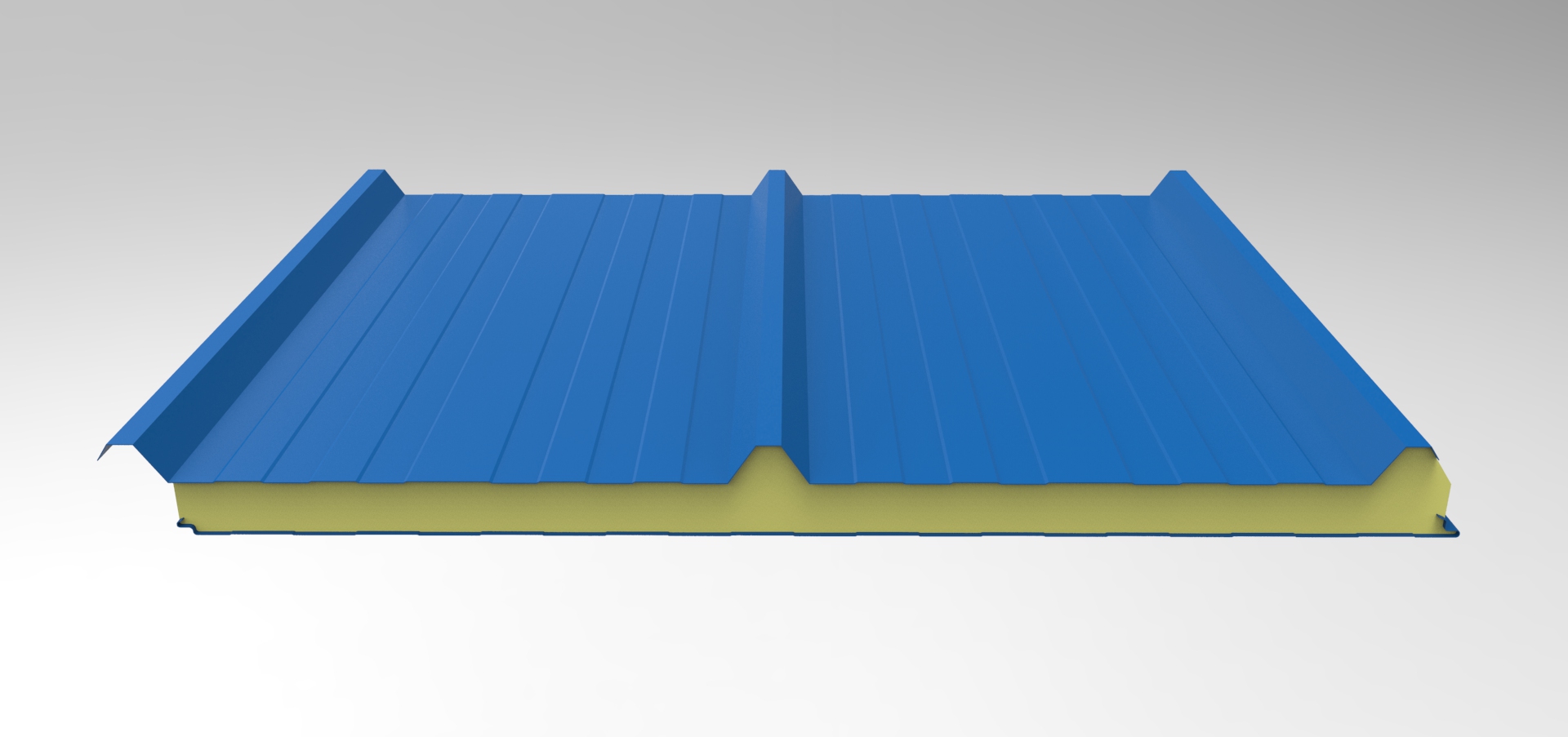

R3 | 3-Rib Roof Panel

Our 3-rib roof panel solution offers high strength, superior thermal insulation and long-lasting performance. Designed for modern construction projects, it is a reliable choice for industrial, commercial and residential buildings.

Technical Specifications

Sheet Metal Properties Painted Galvanised Sheet Metal, Painted Aluminium
Paint Properties Polyester, PVDF, Plastisol, PVC
Number of Ribs 3
Useful Width 1000 mm
Minimum Length 2,5 m
Maximum Length 15 m
Thickness 30mm - 40mm - 50mm
Closed-Cell Ratio 90% (ASTM D 2856)
Thermal Conductivity Value λ 0,024 W/mK (EN 12667)
Level of Dimensional Stability -25°C to 70°C / 20 hours / max. 1% (UNI 8069)

Applications

  • Industrial Buildings
  • Commercial Buildings
  • Social Structures
  • Agricultural and Livestock Structures
  • Container Structures
Get a Quote
Popup Görsel
R5 | High 5-Rib Roof Panel
R5 Çatı Paneli
Görsel 1
Görsel 2
Görsel 3
Görsel 4

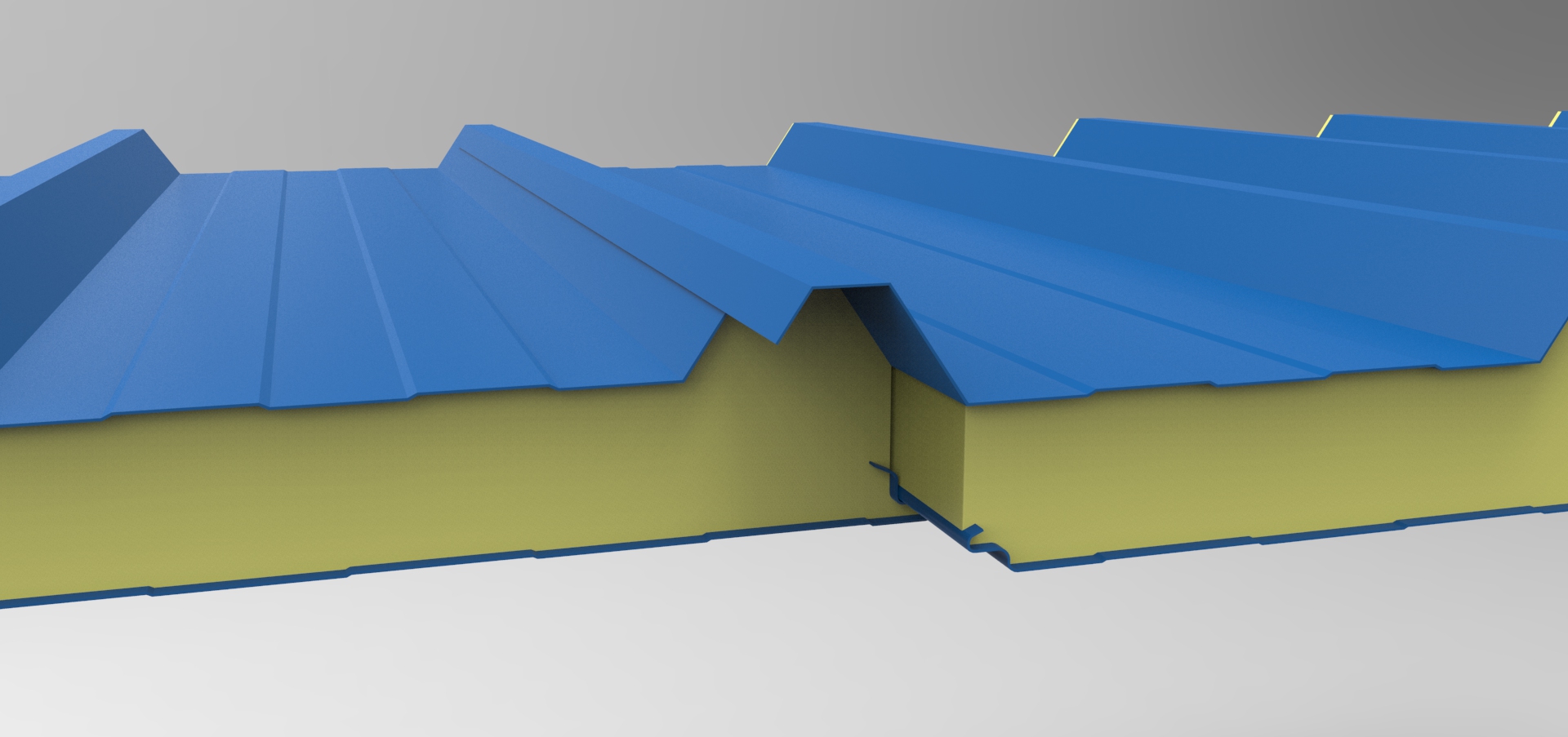

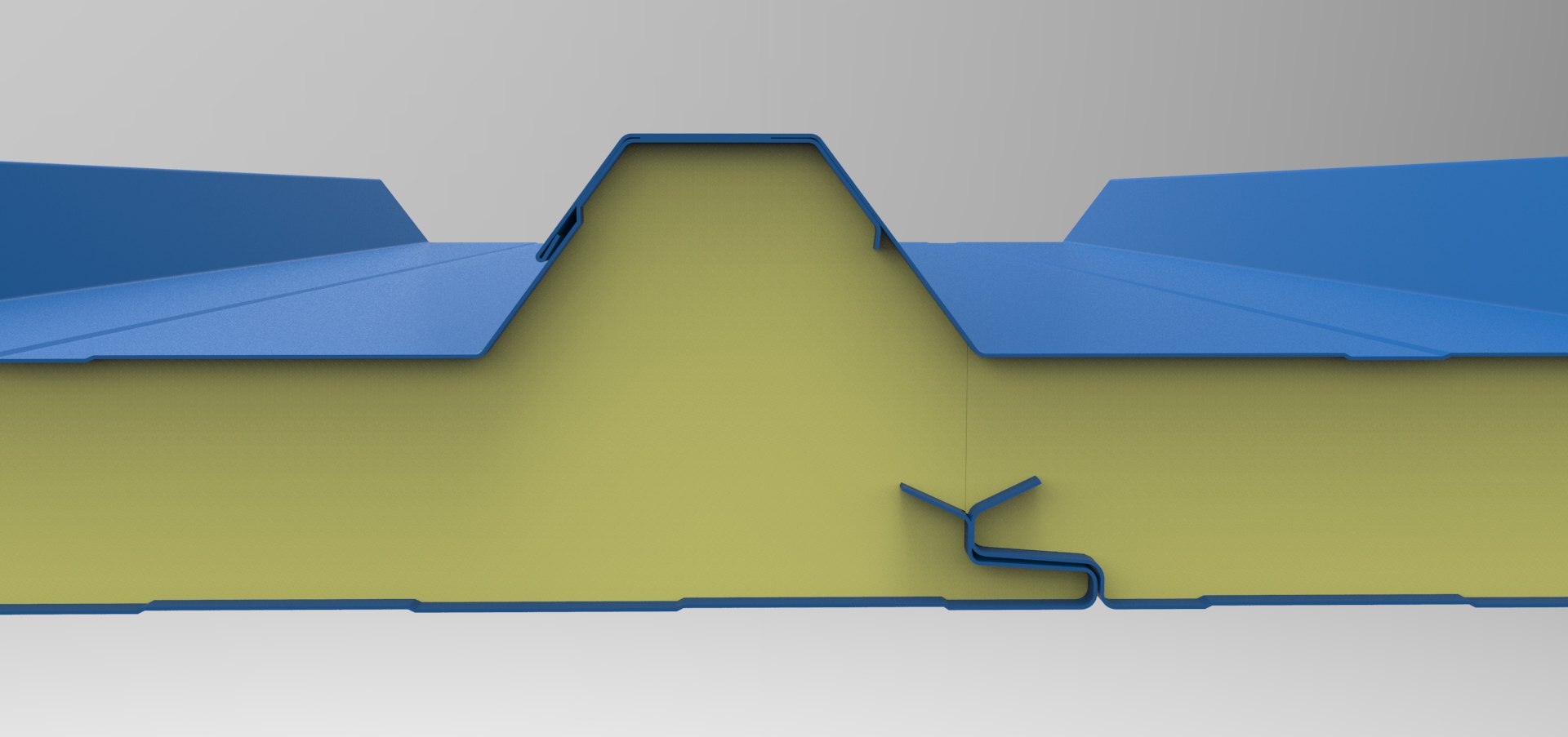

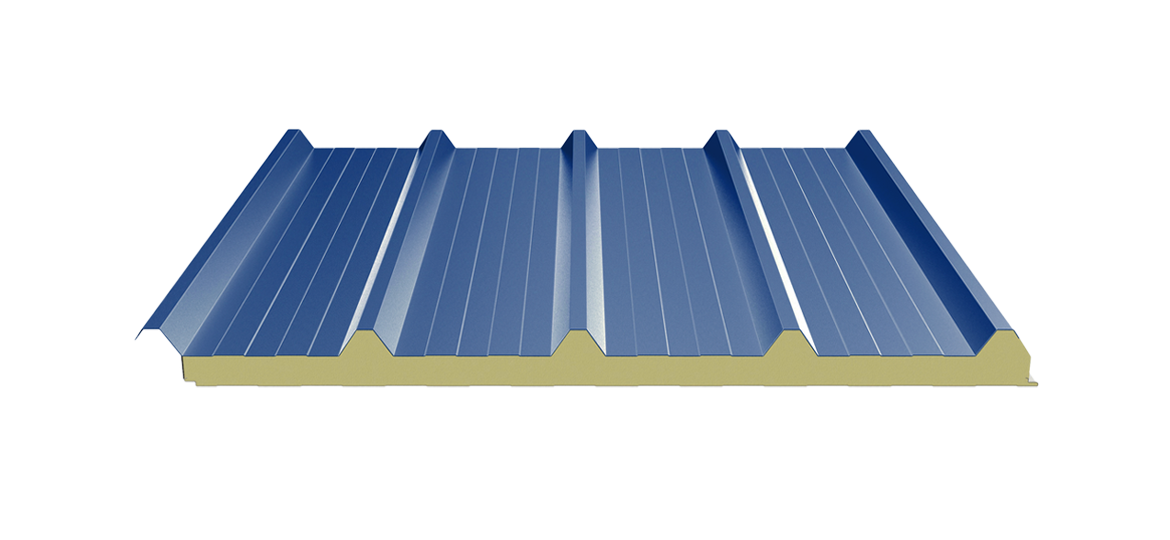

R5 | High 5-Rib Roof Panel

Our High 5-Rib Roof Panel solution, offering high strength and superior thermal insulation, is a professional product preferred in modern construction projects.

Technical Specifications

Sheet Metal Properties Painted Galvanised Sheet Metal, Painted Aluminium
Paint Properties Polyester, PVDF, Plastisol, PVC
Number of Ribs 5
Useful Width 1000 mm
Minimum Length 2,5 m
Maximum Length 15 m
Thickness 30mm - 40mm - 50mm - 60mm - 80mm - 100mm - 120mm - 145mm
Closed-Cell Ratio 90% (ASTM D 2856)
Thermal Conductivity Value λ 0,024 W/mK (EN 12667)
Level of Dimensional Stability -25°C to 70°C / 20 hours / max. 1% (UNI 8069)

Applications

  • Industrial Buildings
  • Commercial Buildings
  • Social Structures
  • Agricultural and Livestock Structures
  • Container Structures
Get a Quote
Popup Görsel

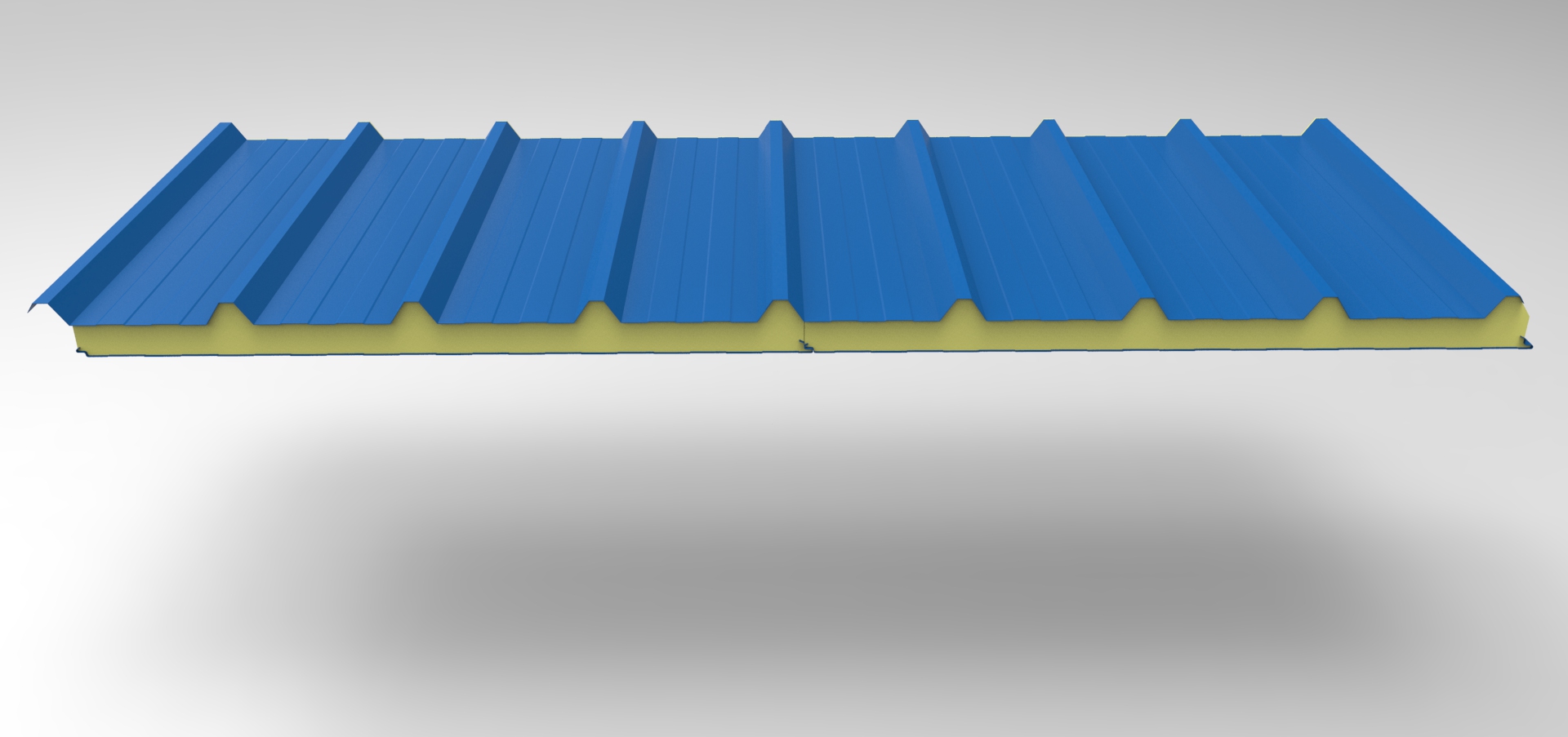

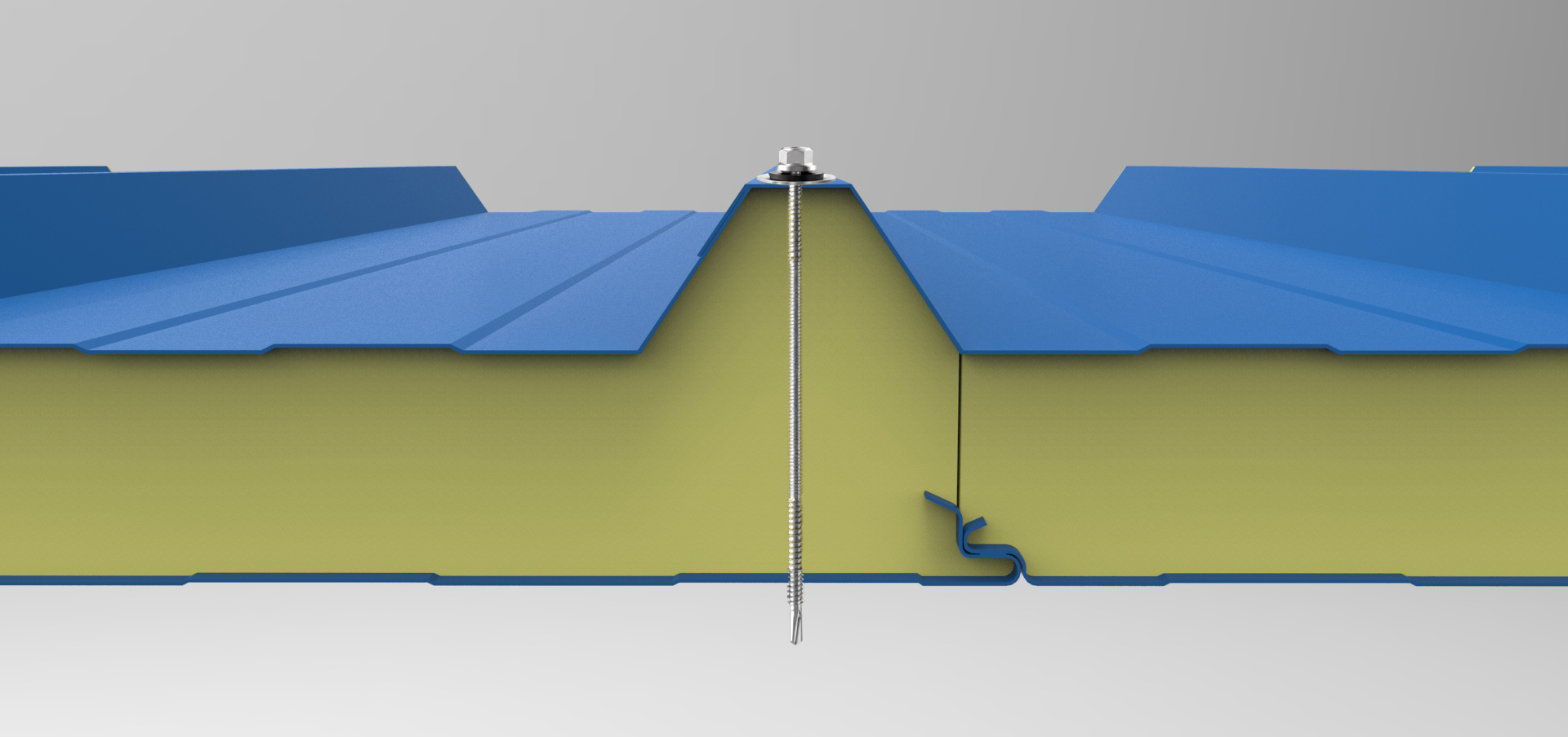

R5 | 5-Rib Roof Panel
R5 Çatı Paneli
Görsel 1
Görsel 2
Görsel 3
Görsel 4

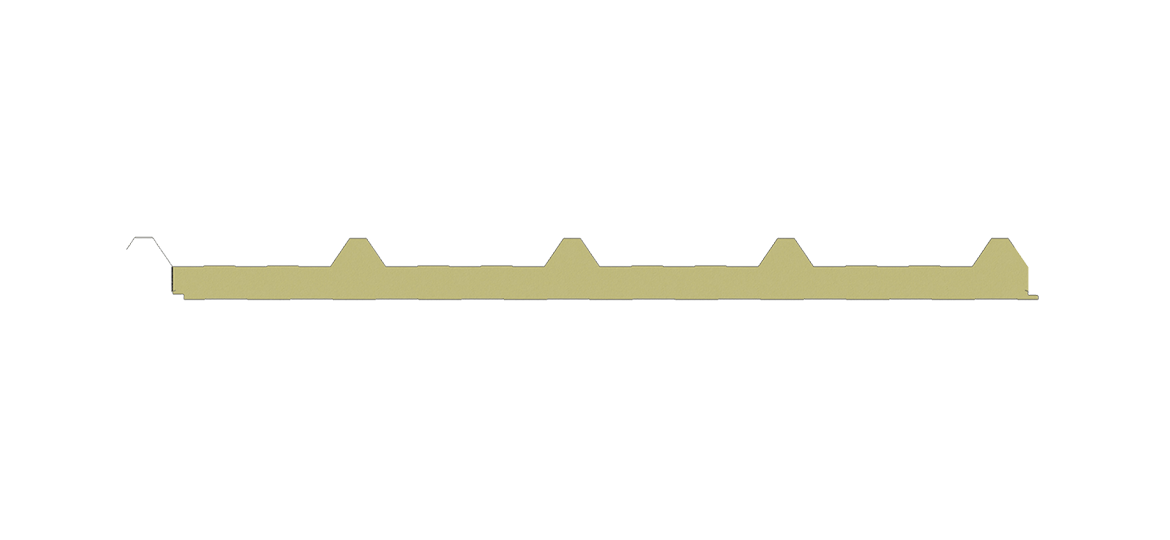

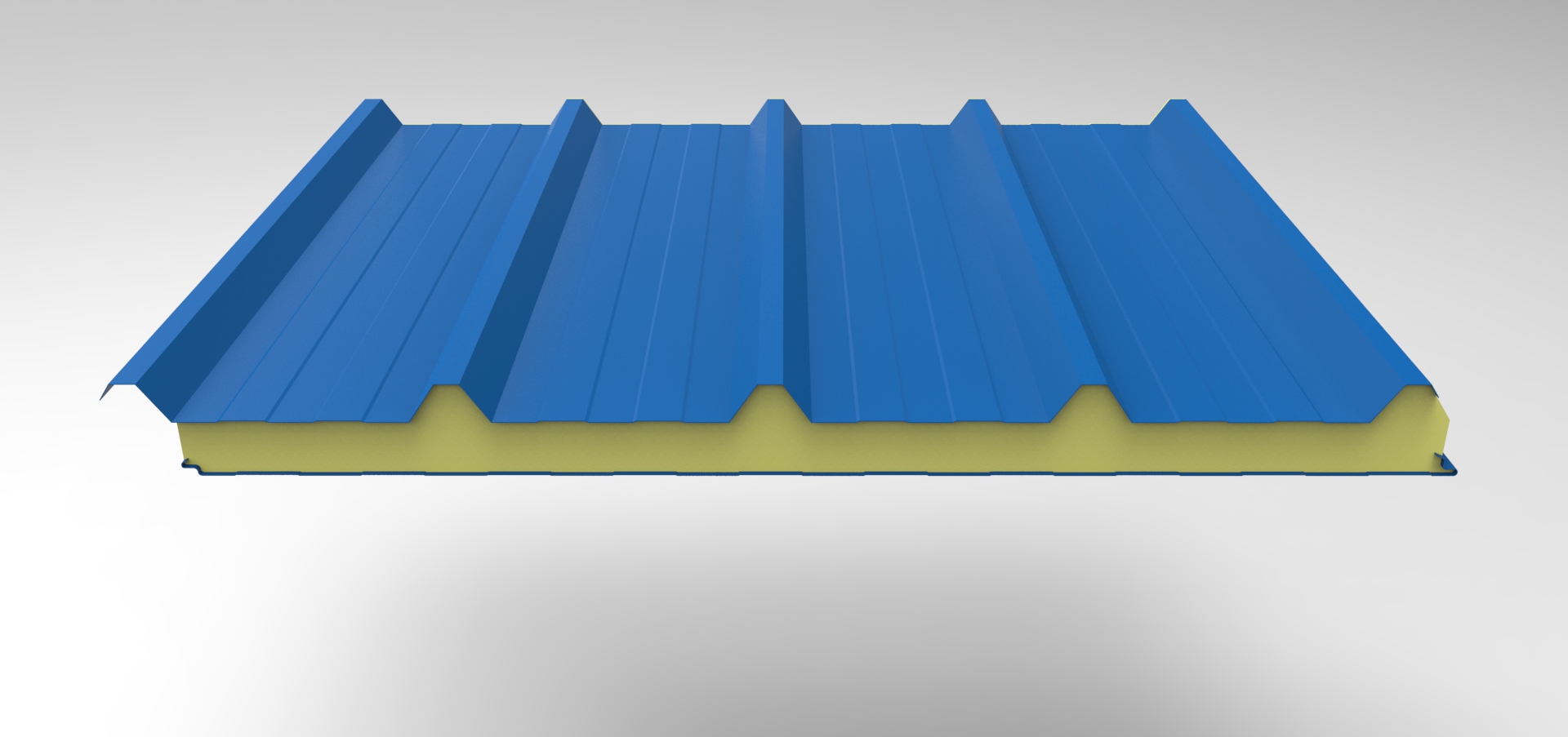

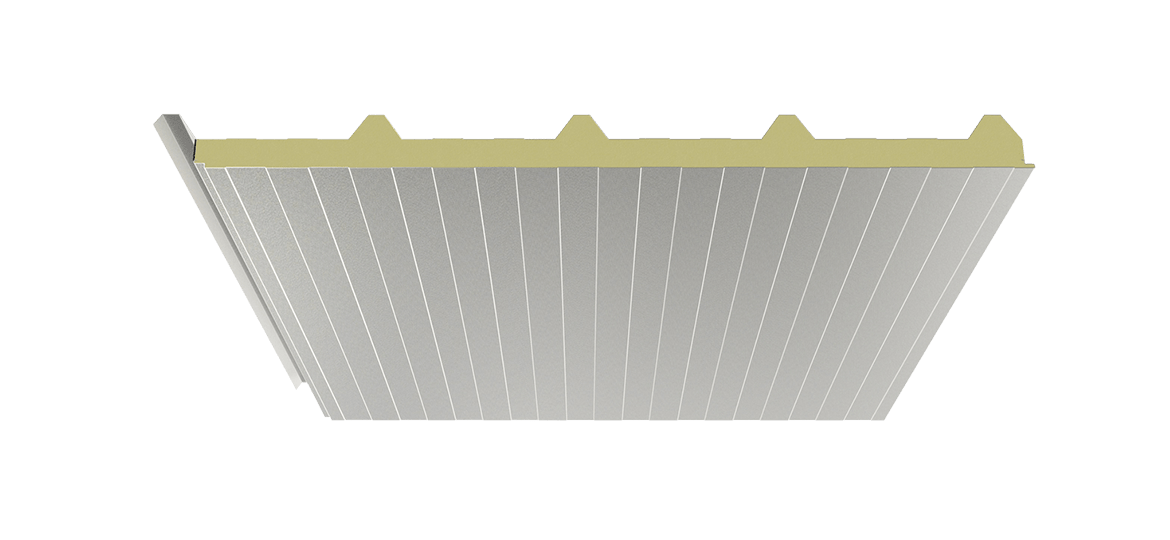

R5 | 5-Rib Roof Panel

Our 5-Rib Roof Panel solution combines high strength, superior thermal insulation and long-lasting durability, making it an ideal choice for modern construction and industrial building projects. .

Technical Specifications

Sheet Metal Properties Painted Galvanised Sheet Metal, Painted Aluminium
Paint Properties Polyester, PVDF, Plastisol, PVC
Number of Ribs 5
Useful Width 1000 mm
Minimum Length 2,5 m
Maximum Length 15 m
Thickness 30mm - 40mm - 50mm
Closed-Cell Ratio 95% (EN 14509)
Thermal Conductivity Value λ 0,022 W/mK (EN 13165)
Level of Dimensional Stability -25°C to 70°C / 20 hours / max. 1% (UNI 8069)

Applications

  • Industrial Buildings
  • Commercial Buildings
  • Social Structures
  • Agricultural and Livestock Structures
  • Container Structures
Get a Quote
Popup Görsel

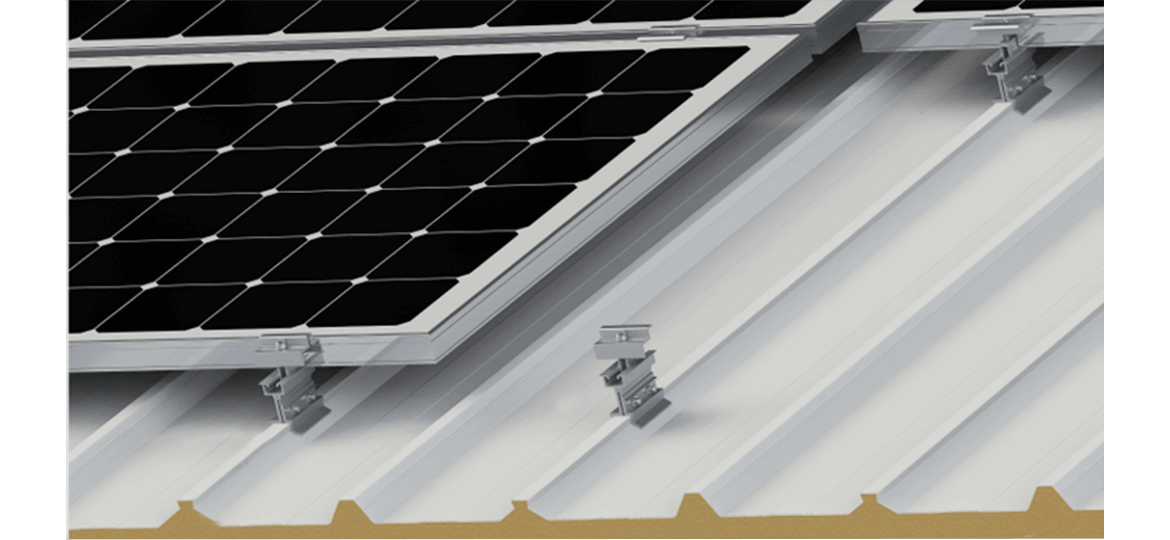

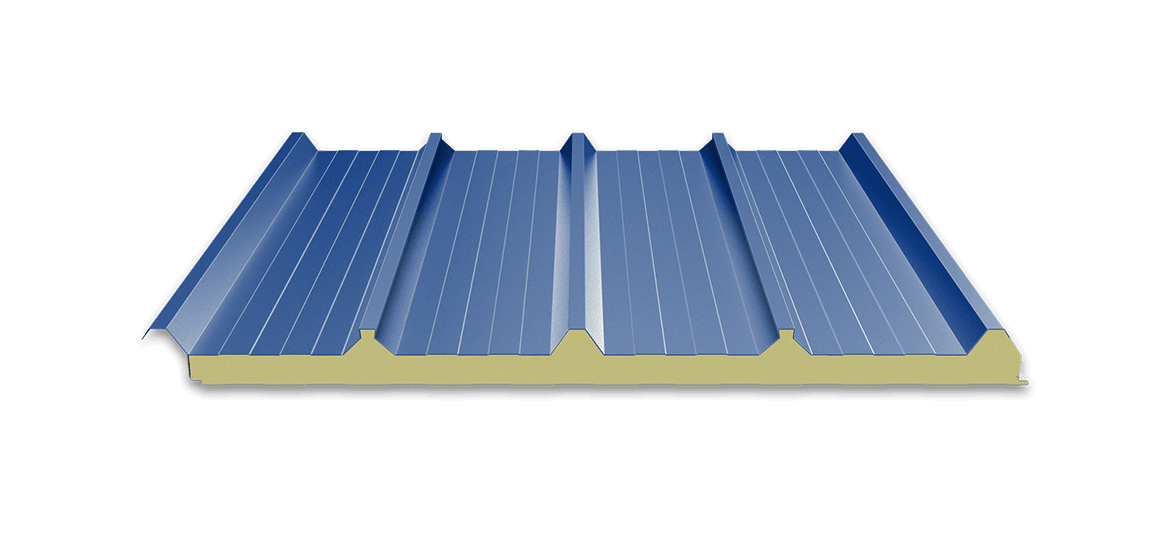

R5 | 5-Rib Solar Roof Panel
R5 Solar Çatı Paneli
Görsel 1
Görsel 2
Görsel 3

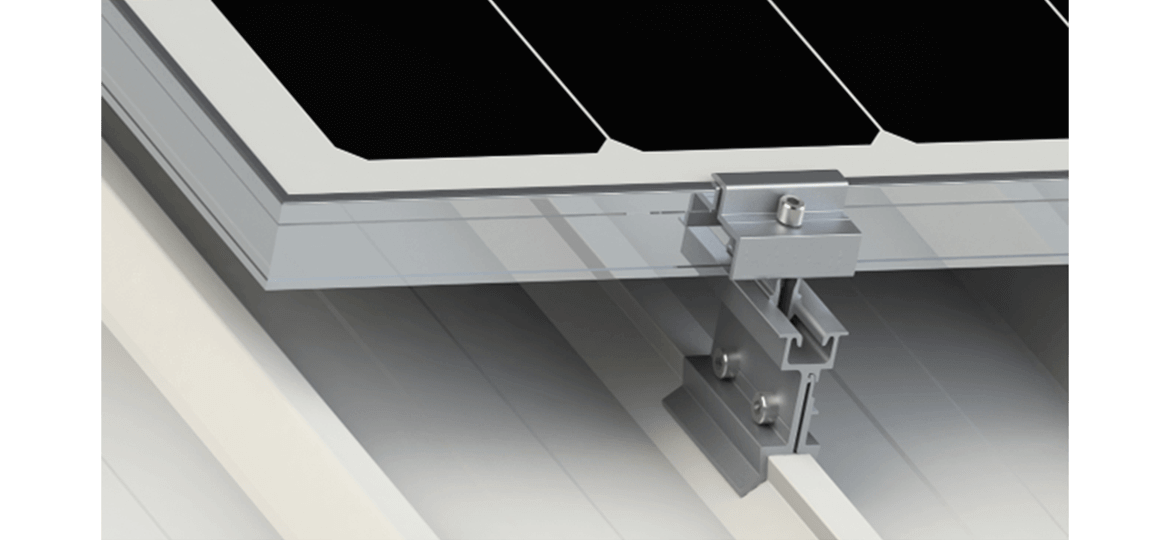

R5 | 5-Rib Solar Roof Panel

Take your buildings into the future with our 5-rib solar roof panel solution, compatible with solar energy systems and offering high strength and superior thermal insulation.

Technical Specifications

Sheet Metal Properties Painted Galvanised Sheet Metal, Painted Aluminium
Paint Properties Polyester, PVDF, Plastisol, PVC
Number of Ribs 5
Useful Width 1000 mm
Minimum Length 2,5 m
Maximum Length 15 m
Thickness 30mm - 40mm - 50mm
Closed-Cell Ratio 90% (ASTM D 2856)
Thermal Conductivity Value λ 0,024 W/mK (EN 12667)
Level of Dimensional Stability -25°C to +70°C / 20 hours / max. 1% (UNI 8069)

Applications

  • Industrial Buildings
  • Commercial Buildings
  • Social Structures
  • Agricultural and Livestock Structures
  • Container Structures
  • Suitable For Solar Power Plants
Get a Quote
Popup Görsel

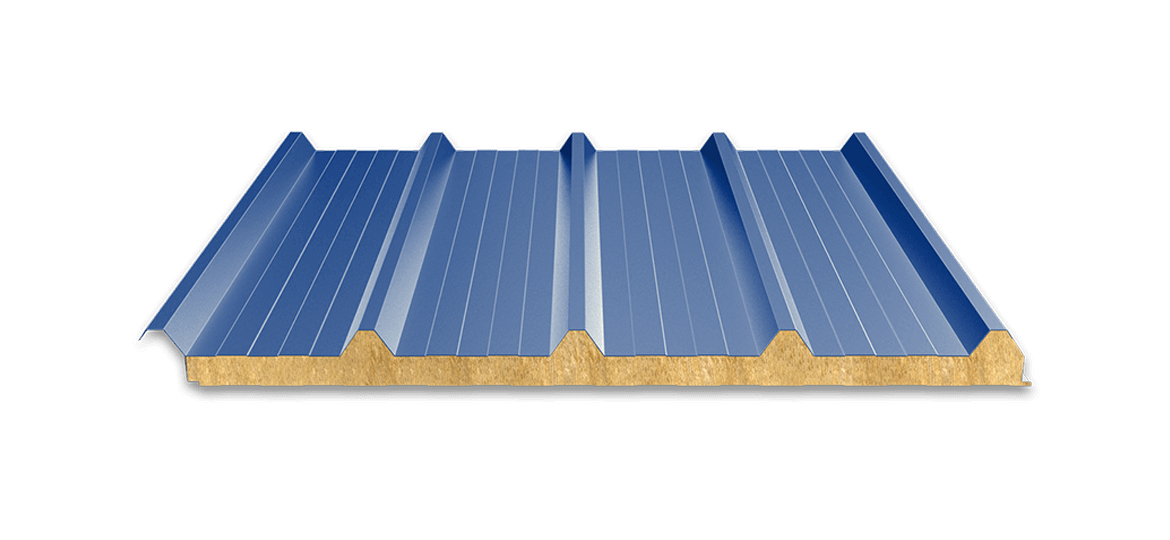

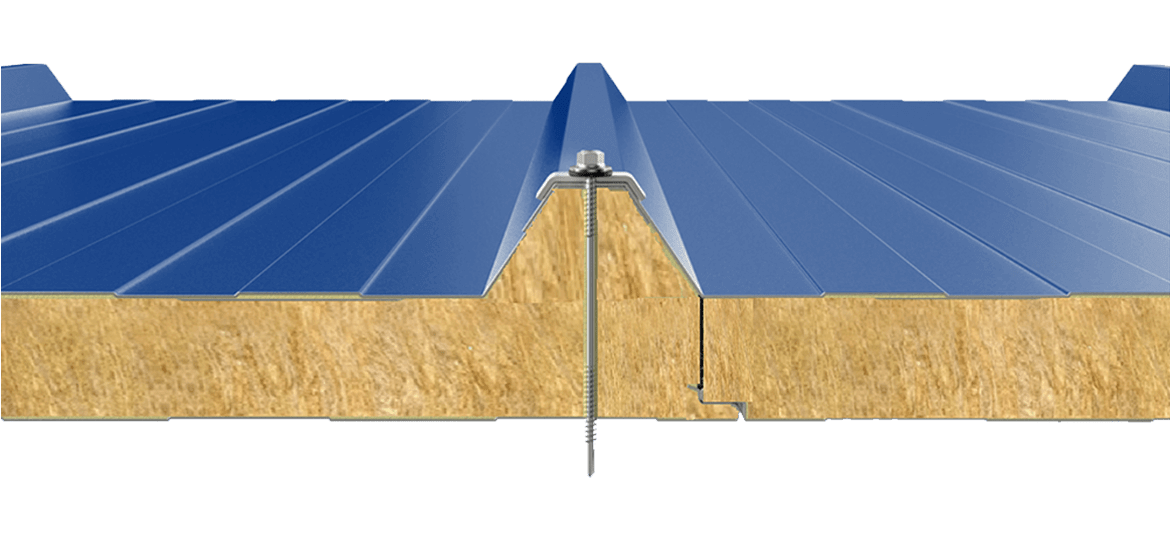

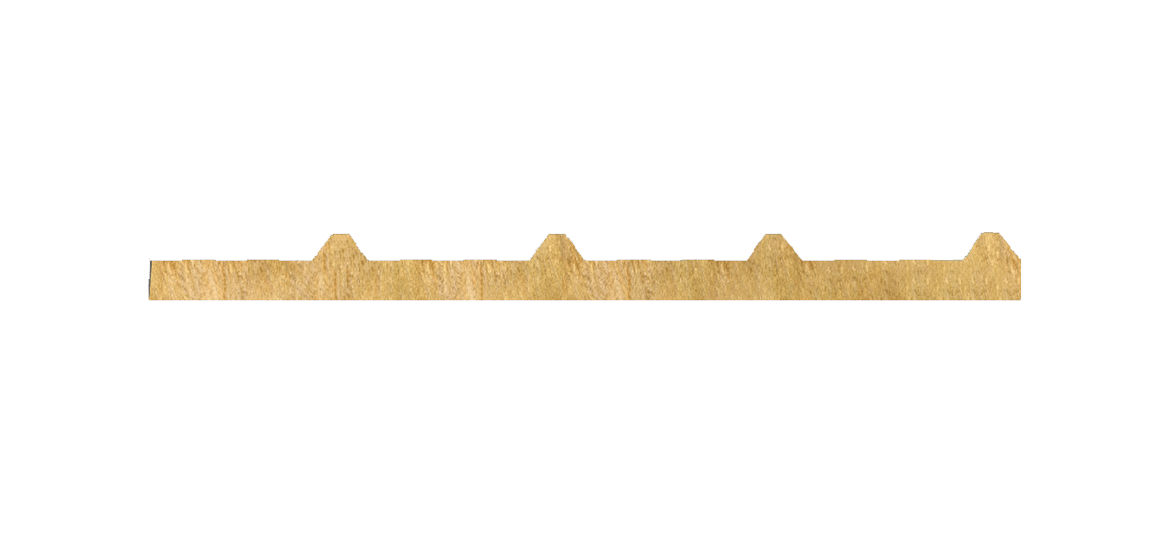

R5 | 5-Rib Rock Wool Roof Panel
R5 Taşyünü Çatı Paneli
Görsel 1
Görsel 2
Görsel 3

R5 | 5-Rib Rock Wool Roof Panel

Our 5-rib rock wool-filled roof panel solution, offering high temperature resistance and superior fire safety, provides outstanding protection against fire.

Technical Specifications

Sheet Metal Properties Painted Galvanised Sheet Metal, Painted Aluminium
Paint Properties Polyester, PVDF, Plastisol, PVC
Useful Width 1000 mm
Number of Ribs 5
Minimum Length 2,5 m
Maximum Length This varies depending on the shipping conditions.
Thickness 50mm - 60mm - 80mm
Temperature Resistance 600°C
Thermal Conductivity Value λ 0,024 W/mK (EN 12667)
Level of Dimensional Stability -25°C to +70°C / 20 hours / max. 1% (UNI 8069)
Rock Wool Density 100 (±10) kg/m³
Rock Wool Thickness 50-60-80-100-120-150 mm
Sound Insulation Rw [db] ≥ : 30

Areas of Application

  • Industrial Buildings
  • Commercial Buildings
  • Social Structures
  • Agricultural and Livestock Structures
  • Container Structures
Get a Quote
Popup Görsel
Other Products

Discover Our Other Products

Take a look at our other panel solutions to suit your needs

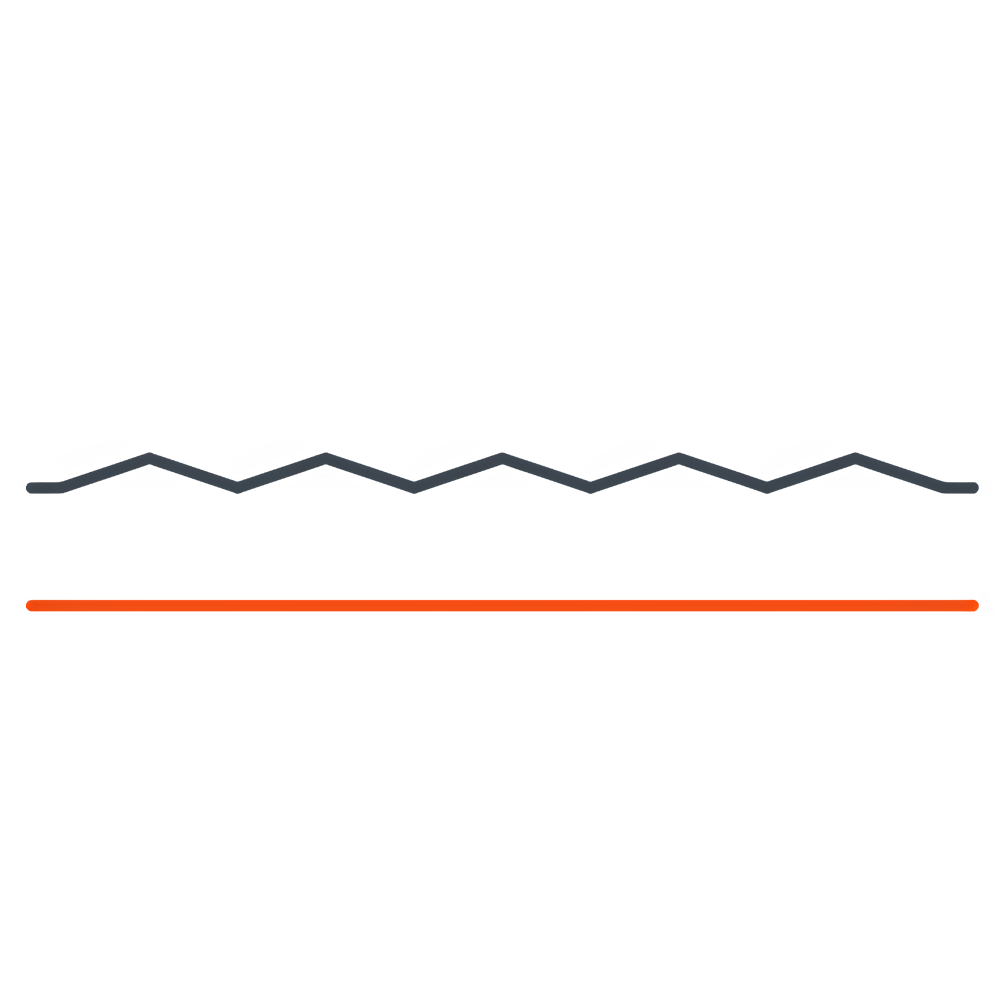

Cephe Panelleri

Facade Panels

Modern and aesthetically pleasing façade cladding systems

View

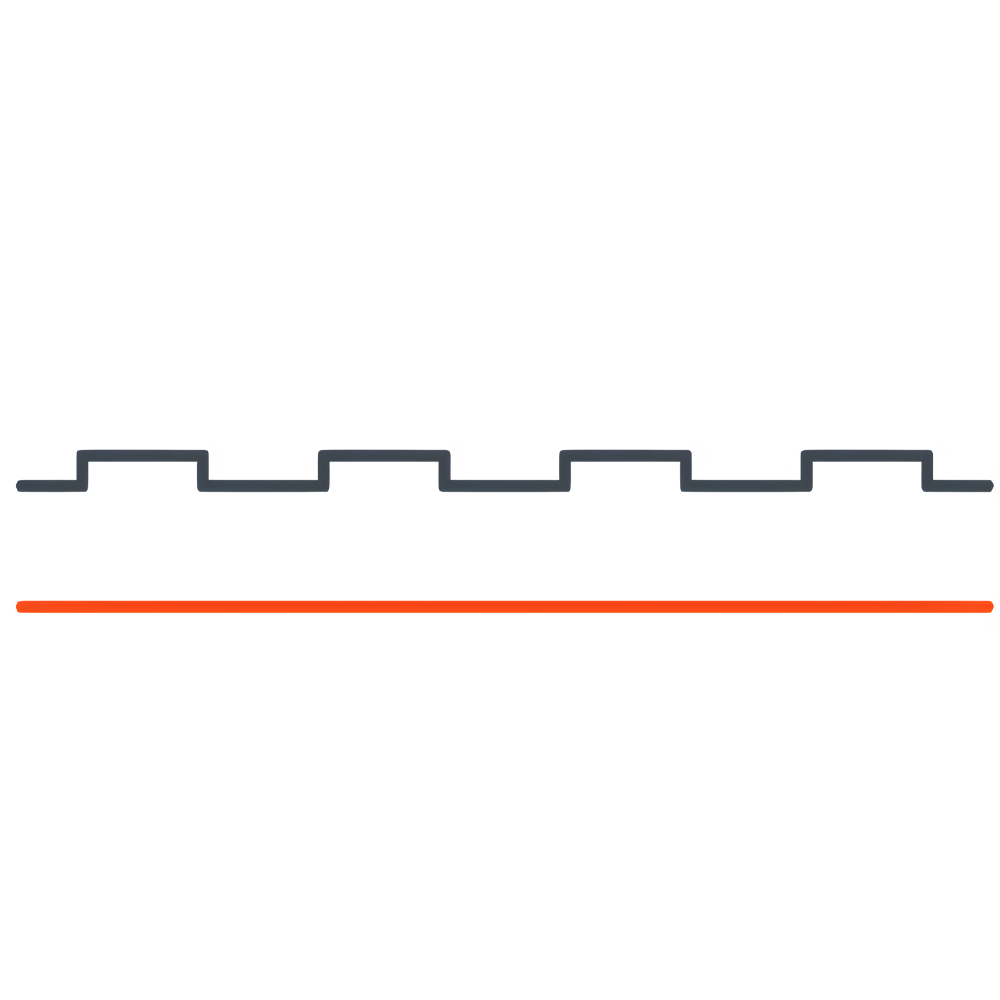

Soğuk Oda Panelleri
